Frames / BSD - Sureshot Frame

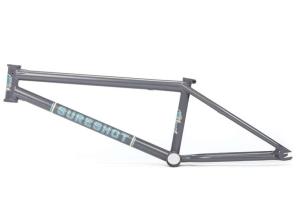

BSD - Sureshot Frame


The Sureshot is designed with a more ramp/park/trails geometry than BSD's other frames. Utilising a low BB, longer rear end, mellower head angle and removable brake lugs, this frame is a true all-rounder.
Built for high-speed roasting! 'Cause you can't, you won't, and you don't stop...

Features
- Ramp-based geometry
- External Gussets
- Built-in cast seat clamp
- Invest cast seat stay bridge
- Removable brake mounts
- 7mm thick invest cast dropouts
- Built-in chain tensioners

Specifications
Brake mounts: Removable - brake kit available separately
Tubing: Sanko Japanese seamless 4130 CrMo / triple butted

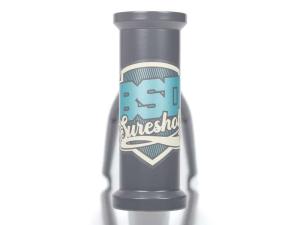

Headtube: Heat-treated 4130 CrMo / CNC / Offset thickness
Bottom Bracket: Heat-treated 4130 CrMo / CNC machined
Dropouts: Heat-treated 4130 CrMo / Invest cast
Seatclamp: Heat-treated 4130 CrMo / Invest cast
Weight - 2.26kgs

Geometry
Top tube length: 20.7", 21.3", 21.7"
Headtube angle: 74.75°
Headtube length: 117mm
Seat tube angle: 71°
Rear end length: 13.4 - 13.9"
BB Height: 11.5"
Standover height: 9"

$899.00
