Forks / Fit - Shiv V.3 Fork

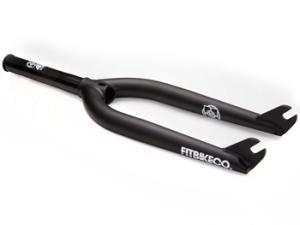

Fit - Shiv V.3 Fork

Fit's goal was to design and produce an extremely strong fork with plenty of tire clearance. After 2 years of R&D and a lot of investment in tooling, the Shiv V.3 is available with a quick 25mm offset. Here are a few features that make these forks so strong.

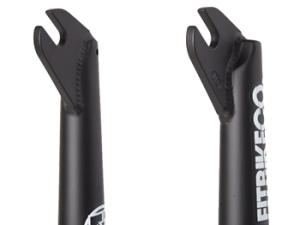

Using left and right specific investment cast drop-outs instead of traditional Cr-Mo plate, we’ve eliminated the weld gap on the inside of the drops, and were able to thicken up the drops toward the top making a much stronger drop-out/leg connection.
Seamless, swaged legs provide more strength than welded or fused caps-especially if pegs are installed. The ends of these legs are formed, not capped and welded so there is nothing to fracture.
A longer 166mm CNC’d steerer tube with increased wall thicknesses wherever possible and a 24mm x 1.5 compression cap with integrated race.
Tapered and butted legs provide tons of strength, crown weld surface, and peg clearance./li>
Post weld 4Q Baked heat-treatment

SPECS >
Legs
Dropouts
Steerer Tube
Steerer Tube Length
Compression
Axle to Crown
Offset
Weight
Heat Treat
Seamless Swaged (No Welded Cap)
Investment Cast
1 Piece CNC-Machined 4130 CrMo
166mm
M24 X 1.5 Thread – 6mm Allen Slot
320mm
25mm
2.25 lb (1.02 kg)
4Q Baked Post-Weld

$380.00
