S & M - BTM XL (Mike Hoder x Edwin Delarosa) Frame


Hoder and the homie – the one and only Edwin Delarosa – cooked up this collab BTM colorway and to say it turned out sick would be an understatement. Cop while you can!

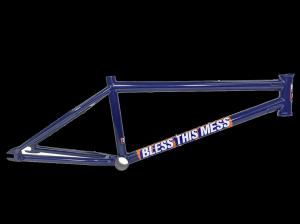

Mike Hoder’s signature BTM frame, up-sized with an extra long 5″ head tube and taller 9.5″ standover height. Big Time Machinery for big time guy. All chromoly, beast-proof construction. Made in USA.

Specifications
Top tube length - 21″,21.25″,21.5″
Rear end length - 13.05-13.50″
Head tube angle - 75°

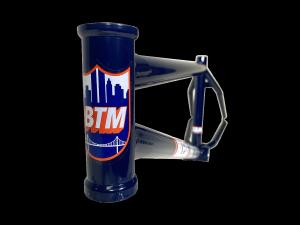

Head tube style - 5″ integrated (45°/45°, 41.8mm)
Seat tube angle - 71°
Seat clamp - Slotted for traditional clamp
Seat post size - 1″ (25.4mm)
Bb height - 11.5″
Bb style - Mid
Standover height - 9.50″
Brake mounts - Thread-on 990 mounts (sold separately)
Dropouts - 14mm slot, 4q-baked
Gyro tabs - none
Weight - 2.45 kg
Tubeset - Butted thermal-x

$1599.00
