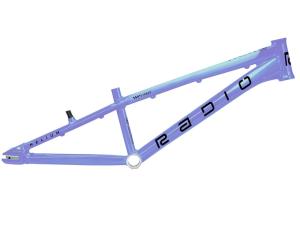

Radio - 2025 Helium Raceline Expert Frame

The Helium Frame took the race world by storm when it was released almost 5 years ago. With multiple World Championship wins, the Helium Frame is now a common site on tracks across the globe.


Features:
• Super lightweight alloy race frame
• Hydroformed 6061 alloy tubing
• Forged & CNC machined dropouts
• Forged and CNC machined Sliding Dropout Disc System (SDDS) with integrated chain tensioner
• Flat mount disc brake (with internal cable routing) and v-brakes (external routing)
• Designed for 140mm and 120mm rotors (please check 120mm rotor fitment with an authorised Radio Bikes dealer based on your hub and brake calliper dimensions)
• integrated chain tensioner bolts
• For 20" x 1 3/8 tyres (451mm)


Specifications:
Toptube Length: 19.5” (495mm)
Chain Stay Length (Min): 13” (330mm)
Rider Area: 19.8" (503mm)
Head Tube Angle: 73.5°
Seat Tube Angle: 71°
BB Height: 10.8" (274mm)
Seat Tube Height: 8.42" (214mm)
Wheel Size: 20" x 1-3/8” (451mm)
Head Tube Size: 1 1/8" for integrated headset
Seat Post Size: 22.2mm
Seat Clamp Size: for 25.4mm ID seat clamp
Tubing: Hydroformed 6061 alloy
Bottom Bracket: BSA, 68mm wide
Head Tube: 4.72" (120mm)
Dropouts: Sliding dropout disc system (SDDS) for 10 & 15mm axles (includes all hardware)
Brakes: Flat mount disc brake or v-brake mounts (removable), 77mm pivot-to-pivot
Weight: 1.54kg (3.39 lbs)

$999.00
