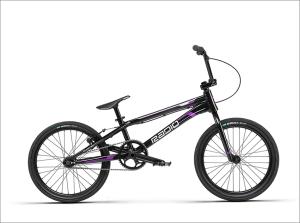

Radio - Raceline Xenon Pro XL Bike
The xenon pro xl features a full spec upgrade and pro xl sized geometry. The mid-tier xenon line is a game changer with all bikes being disc-ready allowing you to convert them to a full disc-brake setup with our aftermarket disc brake kit. Radio spared no details here, from forged disc-ready dropouts with tensioners, their very own aftermarket xenon stem, oxygen tires and argon pro rims, the xenon is a natural born winner.
Frame - Hydroformed 6061 t6 alloy, forged & disc brake mount ready dropouts, with int.
Chain tensioners
Fork - cr-mo, 1-1/8" butted steerer tube, cr-mo fork legs, 30mm offset
Handlebar - 6061-t6 alloy
Grips - Radio, xenon, diamond knurling, clamp on grip, 139mm length
Stem - Radio, xenon pro, toploader, ext. 53mm, cold forged/cnc alloy
Headset - Radio, pro, int. Headset, sealed, threadless, 1-1/8" – 1.5", including fork crown race 1.5"-1 1/8" converter
Brake lever - Promax “ xl-373” alloy brake rear
Brake - Promax “tx-131” alloy brake rear
Crank - Radio, xenon pro, 2pc crank, cold forged/cnc, alloy,180mm length, 24mm spindle
BB - Radio, bsa24, external bearing cups, cnc machined, sealed
Pedals - Radio, xenon slim, alloy
Chain – KMC, z6, 1/2" x 3/32"
Sprocket - Radio, xenon pro, 44t, alloy
Driver - Radio, 16tcog, 1/2"- 3/32", sealed cassette driver
Front hub - Radio, xenon, alloy cnc, fully sealed, 36t, 3/8" cr-mo axle
Rear hub - Radio, xenon, alloy cnc, fully sealed, 36t, disc brake cassette, 3/8" cr-mo axle
Rims - Radio, argon pro, 36h, alloy, sleeved joint f&r
Seat - Radio, xenon, pivotal, no padding
Seat post - Radio, 27.2mm, pivotal, alloy seatpost
Seat clamp - Radio, xenon, quick-release , alloy
Tires - Radio, oxygen, front 20"x1.75" / rear 20"x1.6" f&r
Frame geometry
Top tube length - 21.25"
Chain stay length - 14.8"
Head tube angle - 74°
Seat tube angle - 71°
Bottom bracket height - 11.6"
Handlebar geometry
Rise - 8.1"
Width - 28.25"
Backsweep - 11°
Upsweep - 3.5°
$1699.00
