Complete Bikes / Radio - Raceline Xenon Junior Disc Bike

Radio - Raceline Xenon Junior Disc Bike

Frame - Hydroformed 6061-T6 alloy frame, forged & disc brake mount ready dropouts
Fork - Crmo fork, 1" butted steerer, crmo fork legs, 23mm offset
Bars - 6061-T6 alloy bar
Grips - Radio Raceline Xenon grips, diamond knurling, clamp-on grip, 115mm length
Stem - Arise Cobalt toploader stem, ext. 40mm, alloy
Headset - Radio Raceline integrated headset, sealed, 1"
Lever - Arise Xenon disc brake lever

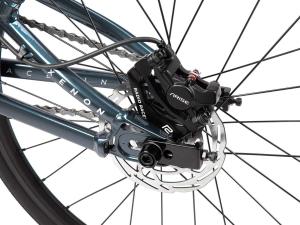

Brakes - Arise Xenon disc brake rear
Cranks - Radio Raceline Xenon 3pc crank, forged alloy, CNC machined, 155mm length
BB - Radio Raceline bb set, BSA square taper, sealed
Pedals - Radio Raceline Xenon Junior pedal, alloy
Chain - KMC Z6 chain, 1/2" x 3/32"
Sprocket - Radio Raceline sprocket, 40T, alloy
Freewheel/Driver - Radio Raceline driver, 16T, 1/2" x 3/32", sealed cassette

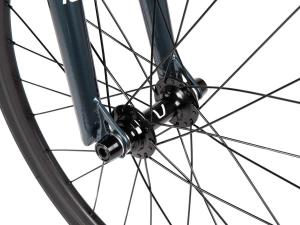

Front Hub - Arise Bravo front hub, alloy CNC, fully sealed, 28h, 3/8" female crmo axle

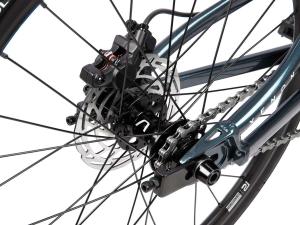

Rear Hub - Arise Alfa rear hub, alloy CNC, fully sealed, 28h, disc brake cassette, 3/8" crmo axle
Rims - Arise Clipper Junior rim, sleeved joint, 28h, alloy
Seat - Box Two combo seat
Seat Clamp - Arise Xenon seat clamp, quick-release, alloy
Tires - Tioga Power Block tyres, 20" x 1-1/8"
Weight - 7.78kg / 17.16lbs

Frame / Bar Geometry
Top Tube Length - 18.6"
Chain Stay Length - 13.4"
Head Tube Angle - 73.5°
Seat Tube Angle - 71°
Bottom Bracket Height - 10.6"

Bar Rise - 4.25"
Bar Width - 24"
Bar Backsweep - 8°
Bar Upsweep - 2°

$1899.00
