Complete Bikes / Redline - MX Junior Bike

Redline - MX Junior Bike

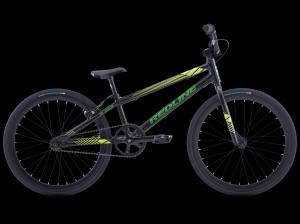

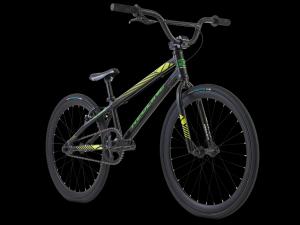

The Redline MX Junior is the perfect entry-level BMX race bike for the beginning youth racer who is 4’6” to 5’1” tall. Made with an aluminum frame and integrated head tube, the Redline MX Junior is lightweight and easy to maneuver. The MX Junior features high-quality 155mm 3-piece aluminum cranks, integrated headset, 20 inch wheels, and an integrated saddle and seat post combination for weight savings.

Specifications
Frame - 6061 Alloy w/Integrated Headtube
Fork - RL Race Hi-Ten w/ Tapered legs
Headset - Integrated 1"

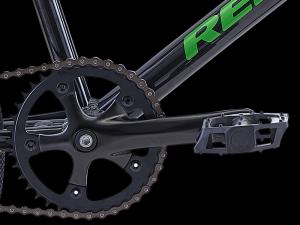

Cranks - Race Aluminum 3pc, 155mm
Sprocket - 38t, Alloy
Bottom bracket - Euro, Square Taper JIS
Cogset - 14t
Chain - KMC Z410
Front hub - Redline Aluminum
Rear hub - RL Aluminum Flip-Flop
Spokes - 14g Steel
Rims - Alloy Race 20 x 1 1/8

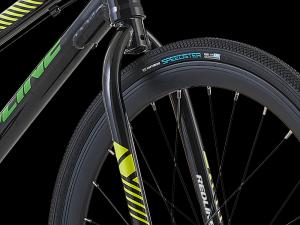

Tyres - Vee Speedster 20 x 1-1/8"

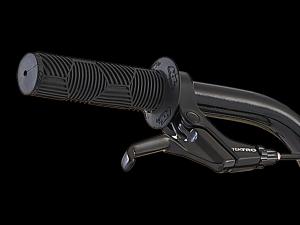

Brake levers - Tektro
Pedals - RL Race 9/16" PC pedal
Handlebar - RL Race Aluminum 4.5" Rise / 10° Back / 2° Up
Grips - Redline Hex Expert w/plugs
Stem - RL Hollow Point Aluminum 1" threadless
Seat - RL Race Integrated w/22.2 Post
Brakes - Tektro 926 AL Linear


Geometry
Frame Size - 20"
Bike Top Tube Length - 18.5 "
Bike Head Angle - 73.0 °
Bike Seat Angle - 69.0 °
Bike Chain Stay Length - 13.5 "
Bike Bb Height - 10.8 "
Bike Stem Length - 40.0 mm
Bike Handlebar Width - 24.0 "
Bike Crank Length - 155.0 mm

$999.00

Or 6 weekly payments of $166.50 with
