Frames / S & M - Steel Panther Frame

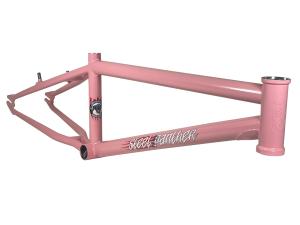

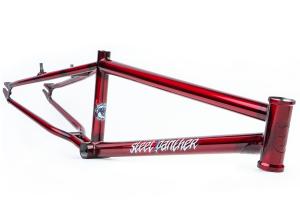

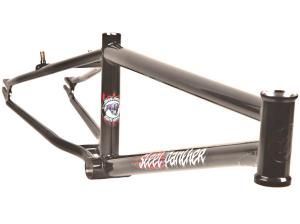

S & M - Steel Panther Frame

Prowling BMX tracks, easily preying on weaker Asian varieties, the American Steel Panther is King of the cr-mo race frame jungle. And unlike it’s predecessors the 38 Special and Speedwagon, it’s not named after a cheesy rock back from the 80’s.


Some notable improvements from the Speedwagon include: Additional bend in seat-stays for greater chain clearance, integrated chain tensioners in drops and slightly lower stand-over. Rear-end length depends on Top Tube length.


Specifications
Top Tube/Rear End - 21",21.25",21.5" / 14.4"-15.4"
Head Tube Angle - 74.5°
Head Tube Style - Integrated (45°/45°, 41.8mm)
Seat Tube Angle - 71°
Seat Clamp - Traditional Slot
Seat Post Size - 27.2mm
BB Height - 11.5"
BB Style - 68mm Euro
Standover Height - 7.75"
Brake Mounts - V Brake
Dropouts - 3/8" Slot, Built In Tensioner
Gyro Tabs - None
Weight - 1.88kg - 2kg
Tubeset - Butted Thermal-X

$1700.00
