Complete Bikes / Radio - Raceline 24 inch Helium Cruiser XL

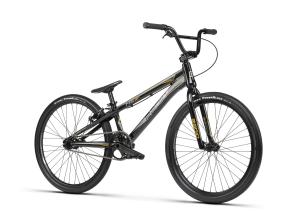

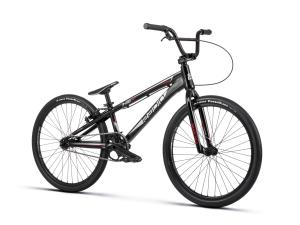

Radio - Raceline 24 inch Helium Cruiser XL


A bike that has developed quite the following, Radio is stoked to see the return of the Helium Cruiser to their line-up. Taking their aftermarket Helium Cruiser frame and injecting it with a full pro parts package, they spared no details here. From forged dropouts to Radio’s very own aftermarket Argon Pro rims to parts from Promax and Tioga, this 24″ machine is a bike with no limits.

Specifications

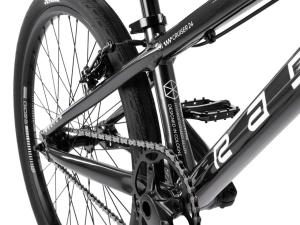

Frame - Hydroformed 6061 T6 alloy, tapered headtube, forged dropouts
Fork - Cr-Mo, 1-1/8″ butted steerer tube, Cr-Mo fork legs, 30mm offset
Handlebar - 4130 seamless Cr-Mo
Grips - Radio, 'Xenon', diamond knurling, clamp on grip, 139mm length
Stem - Radio, 'Xenon Pro', toploader, ext. 53mm, cold forged/CNC alloy

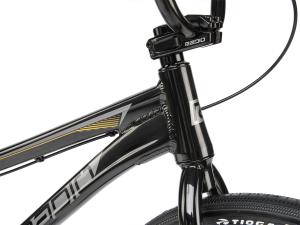

Headset - Radio, 'Pro', int. headset, sealed, threadless, 1-1/8″ – 1.5″, including fork crown race 1.5″-1 1/8″ converter
Brake lever -Promax 'XL-373' alloy brake rear
Brake - Promax 'TX-131' alloy brake rear

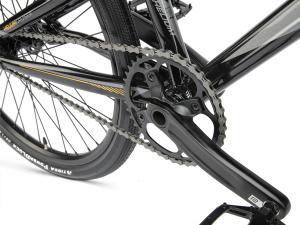

Crank - Radio, 'Xenon Pro', 2pc crank, cold forged/CNC, alloy,180mm length, 24mm spindle
BB - Radio, 'BSA24', external bearing cups, CNC machined, sealed
Pedals - Radio, 'Xenon' slim, alloy
Chain - KMC, 'Z6', 1/2″ x 3/32″
Sprocket - Radio, 'Xenon Pro', 41T, alloy
Driver - Radio, 18T cog, 1/2″- 3/32″, sealed driver
Front hub - Radio, 'Xenon', alloy CNC, fully sealed, 36T, Cr-Mo axle

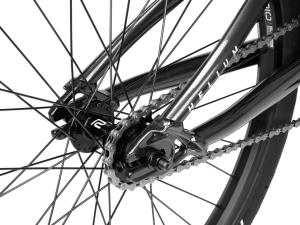

Rear hub - Radio, 'Xenon', alloy CNC, fully sealed, 36T, cassette, 3/8″ Cr-Mo axle
Rims - Radio, 'Argon Pro', 36H, alloy, sleeved joint F & R

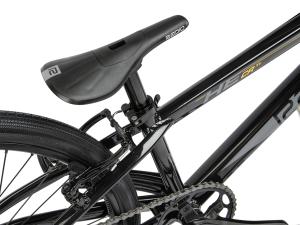

Seat - Radio, 'Xenon', pivotal, no padding
Seat post - Radio, 27.2mm, pivotal, alloy seatpost
Seat clamp - Radio, 'Xenon', quick-release , alloy
Pedals - Radio, 'Xenon' slim, alloy
Tires - Tioga, 'Power-block', front 24″x1.75″ / rear 24″x1.6″
Weight - 10.24kg/ 22.79lbs

Frame geometry
Top tube length - 22″
Chain stay length - 15.15″
Head tube angle - 74°
Seat tube angle - 71°
Bottom bracket height - 12″

Handlebar geometry
Rise - 6.1″
Width - 26.75″
Backsweep - 8°
Upsweep - 2°

$1899.00
