Complete Bikes / Radio - Raceline Xenon Mini Bike

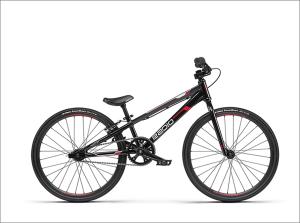

Radio - Raceline Xenon Mini Bike


The mid-tier xenon line is a game changer with all bikes being disc-ready allowing you to convert them to a full disc-brake setup with our aftermarket disc brake kit. The xenon mini might be small in size but packs a real punch in power. Radio spared no details here, from forged disc-ready dropouts, their very own aftermarket clipper junior rims to parts from promax and tioga, the xenon is a natural born winner.

Frame - Hydroformed 6061 t6 alloy, forged & disc brake mount ready dropouts

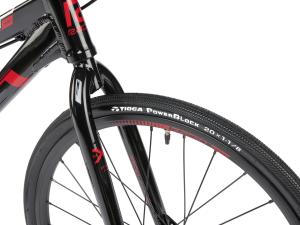

Fork - cr-mo, 1" butted steerer tube, cr-mo fork legs, 23mm offset
Handlebar - 6061-t6 alloy
Grips - Radio, xenon, diamond knurling, clamp on grip, 115mm length
Stem - Radio, cobalt-toploader, ext. 40mm, alloy
Headset - Radio, integrated headset, sealed, 1"
Brake lever - Promax “xl-378” alloy brake rear
Brake - Promax “mv-85” alloy brake rear

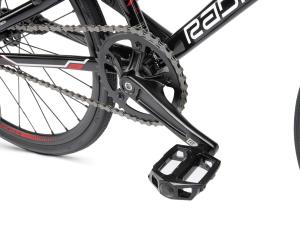

Crank - Radio, xenon 3pc crank, forged/cnc, alloy crank, 140mm length
BB - Radio, bsa square taper, sealed
Pedals - Radio, xenon junior, alloy
Chain - KMC, z6, 1/2" x 3/32"
Sprocket - Radio alloy, 38t sprocket
Driver - Radio, 16tcog, 1/2"- 3/32", sealed cassette driver
Front hub - Radio, xenon, alloy cnc, fully sealed, 28t, 3/8" cr-mo axle

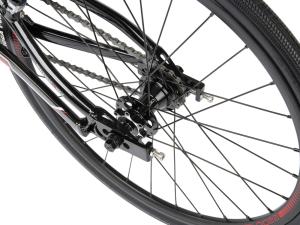

Rear hub - Radio, xenon, alloy cnc, fully sealed, 28t, disc brake cassette, 3/8" cr-mo axle
Rims - Radio, clipper junior, 28h, alloy, sleeved joint
Seat - Radio “mini” combo seat
Seat post - 22.2mm alloy
Seat clamp - Radio, xenon, quick-release, alloy
Tires - Tioga, power-block, 20"x 1-1/8"
Weight- 7.55kg/ 16.64lbs

Frame geometry
Top tube length - 17.5"
Chain stay length - 13.1"
Head tube angle - 72°
Seat tube angle - 70°
Bottom bracket height - 10.7"

Handlebar geometry
Rise - 2.25"
Width - 21"
Backsweep - 8°
Upsweep - 2°

$1399.00
