Complete Bikes / Redline - MX 20 Bike

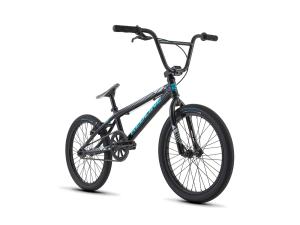

Redline - MX 20 Bike


The Redline MX20 is lightweight and easy to maneuver. The MX20 features a high-quality 3-piece crank set, integrated headset, pivotal race saddle, and 20-inch wheels. The Redline MX20 is top-of-class for value and quality, and best of all, it’s race-ready out of the box. Fits riders 5’3” to 5’8”.
Specifications
Frame - 6061 Alloy W/Integrated Headtube

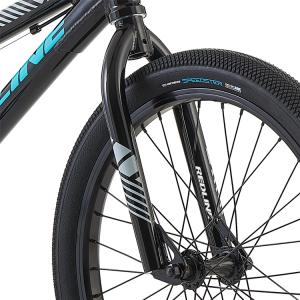

Fork - Rl Race Hi-Ten W/ Tapered Legs
Headset - Integrated 1 1/8"

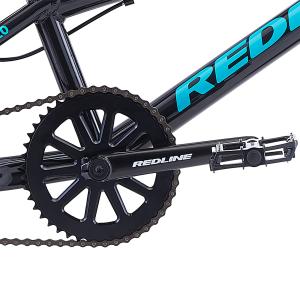

Cranks - Race Chromo 175mm 3pc Cranks
Sprocket - 44t, Alloy
Bottom Bracket - Euro
Cogset - 16t
Chain - Kmc Z410
Front Hub - Redline Aluminum

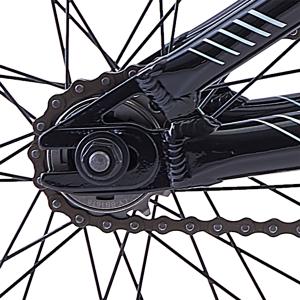

Rear Hub - Rl Aluminum Flip-Flop
Spokes - 14g Steel
Rims - Alloy Race 20 X 1.75, 36h
Tires - Vee Speedster (F)20 X 1.95 / (R)20 X 1.75"
Brake Levers - Tektro
Pedals - Rl Aluminum 9/16" Platform
Handlebar - Rl Race 8" Rise / 10° Back / 4° Up
Grips - Redline Hex Expert W/Plugs
Stem - Rl Hollow Point Aluminum 1 1/8" Threadless
Seat - Pivotal Race
Seatpost - Pivotal 26.8

Brakes - Tektro Bx310 Linear


Geometry
Frame Size - 20"
Bike Top Tube Length - 20.25 "
Bike Head Angle - 74.0 °
Bike Seat Angle - 70.0 °
Bike Chain Stay Length - 15.5 "
Bike Bb Height - 11.5 "
Bike Stem Length - 55.0 mm
Bike Handlebar Width - 28.0 "
Bike Crank Length - 175.0 mm

$1099.00
