Complete Bikes / Redline - MX 24 Bike

Redline Bmx

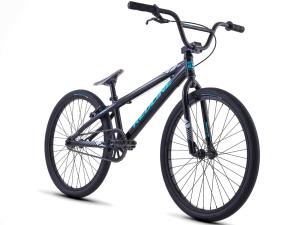

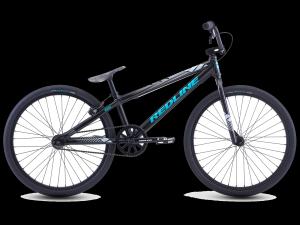

Redline - MX 24 Bike


The Redline MX24 is lightweight and easy to maneuver. The MX24 features a high-quality 3-piece crank set, integrated headset, Pivotal Race saddle, and 24 inch wheels. The Redline MX24 is top of class for value and quality, and best of all, it’s race-ready out of the box.

Specifications
Frame - 6061 Alloy W/Integrated Headtube
Fork - Rl Race Hi-Ten W/ Tapered Legs
Headset - Integrated 1 1/8"

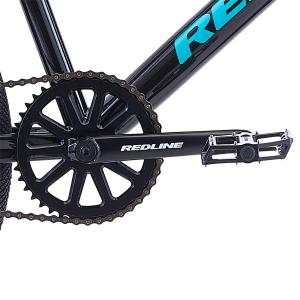

Cranks - Race Chromo 175mm 3pc Cranks
Sprocket - 41t, Alloy
Bottom Bracket - Euro
Cogset - 18t
Chain - Kmc Z410
Front Hub - Redline Aluminum
Rear Hub - Rl Aluminum Flip-Flop
Spokes - 14g Steel
Rims - Alloy Race 24 X 1.75, 36h
Tires - Vee Speedster 24 X 1.75"
Brake Levers - Tektro
Pedals - Rl Aluminum 9/16" Platform
Handlebar - Rl Race, 5.5" Rise / 12° Back / 1° Up
Grips - Redline Hex Expert W/Plugs
Stem - Rl Hollow Point Aluminum 1 1/8" Threadless

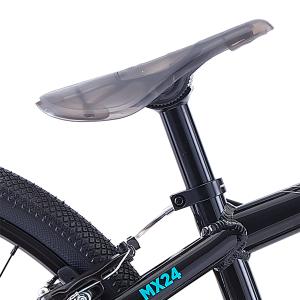

Seat - Pivotal Race
Seatpost - Pivotal 26.8
Brakes - Tektro Bx310 Linear

Geometry
Frame Size - 24"
Bike Top Tube Length - 21.8 "
Bike Head Angle - 74.0 °
Bike Seat Angle - 70.0 °
Bike Chain Stay Length - 15.1 "
Bike Bb Height - 12.0 "
Bike Stem Length - 55.0 mm
Bike Handlebar Width - 28.0 "
Bike Crank Length - 175.0 mm

$1300.00
