Frames / Radio -2025 Helium Raceline Junior Frame

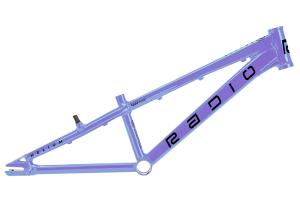

Radio -2025 Helium Raceline Junior Frame


The Helium Frame took the race world by storm when it was released almost 5 years ago. With multiple World Championship wins, the Helium Frame is now a common site on tracks across the globe. Radio's flagship frame uses their very own forged dropout design which allows it to be fully disc-brake compatible when used with our Helium Disc Brake Mount.


Features:
• Super lightweight alloy race frame
• Hydroformed 6061 alloy tubing
• Forged & cnc machined dropouts
• For 20” (451mm) x 1 1/8” tyres
• Will work with disc brake when used with the Radio Helium Expert Disc Brake Mount (Not included, found HERE)

Specifications
Toptube Length: 18.6” (473mm)
Chain Stay Length (Min): 12.8” (325mm)
Rider Area: 19" (483.5mm)
Head Tube Angle: 73.5°
Seat Tube Angle: 71°
BB Height: 10.6" (269mm)
Seat Tube Height: 8.26" (210mm)
Wheel Size: 20" (451mm) x 1-1/8”
Head Tube Size: 1" for integrated headset
Seat Post Size: 22.2mm
Seat Clamp Size: for 25.4mm ID seat clamp
Tubing: Hydroformed 6061 alloy
Bottom Bracket: BSA, 68mm wide
Head Tube: 4.33" (110mm)
Dropouts: 10mm (3/8") slots
Brakes: v-brake mounts (removable), 77mm pivot-to-pivot, disc brake compatible with additional mount
Weight: 1.36kg (2.99lbs)

*Chain Tensioners sold separately

$899.00
