Frames / Radio - 2024 Helium Raceline Frame - Mini

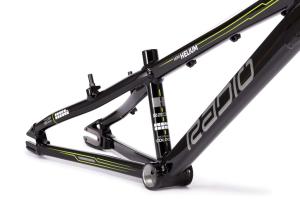

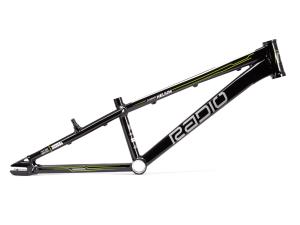

Radio - 2024 Helium Raceline Frame - Mini

The helium frame took the race world by storm when radio released it almost x2 years ago. With multiple world championship wins, the helium frame is now a common site on tracks across the globe. For this season they wanted to give the helium a full revamp. Radio’s flagship frame now uses thier very own new forged dropout design which allows it to be fully disc-brake compatible when used with their helium disc brake mount. Available in a huge variety of sizes and some of radio’s most vibrant and unique colours to date, there simply isn’t a better looking or feeling frame on the market than the helium!

Features

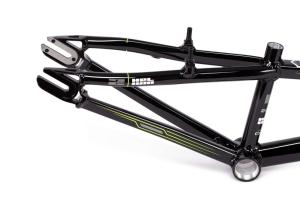

- Forged and cnc machined dropout with integrated chain tensioner
- Disc brake compatible with helium expert disc brake mount

Specifications
Material - hydroformed 6061 alloy
Top tube length (effective) - 17.6” (447mm)
Chain stay length (min.) - 12.4” (315mm)
Dropout size - 10mm
Head tube angle - 73°
Seat tube angle - 70°

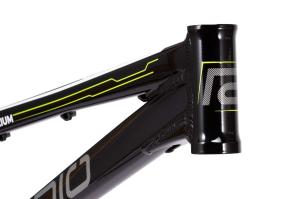

Head tube size (full int.) - 1” (110mm)
Seat post size - 22.2mm
Seat tube length - 200mm
Bottom bracket height - EU, 10.6”
Wheel size - 20 x 1-1/8”
Rider area - 456.2mm
Weight – 1.210kg

$650.00
