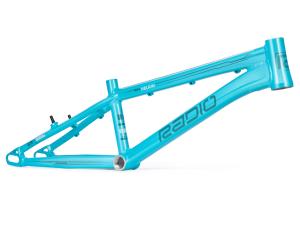

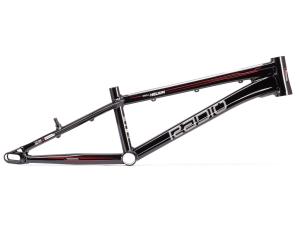

Radio - 2024 Helium Raceline Frame - Pro L

The helium frame took the race world by storm when Radio released it almost x2 years ago. With multiple world championship wins, the helium frame is now a common site on tracks across the globe. For this season we wanted to give the helium a full revamp. Radio’s flagship frame now uses their very own new forged dropout design which allows it to be fully disc-brake compatible when used with their helium disc brake mount. Available in a huge variety of sizes and some of our most vibrant and unique colours to date, there simply isn’t a better looking or feeling frame on the market than the helium!

Features
-Forged and CNC machined dropout with integrated chain tensioner
-Disc brake compatible with Helium Pro disc brake mount

Specifications
Material - Hydroformed 6061 alloy
Top Tube Length (effective)
L – 20.9” (531mm)
XL – 21.25” (540mm)
XXL – 21.75” (552mm)
XXXL – 22.25” (565mm)
Chain Stay Length (min)
L – 13.9” ( 353mm)
XL – 14.5” (368mm)
XXL/XXXL – 14.8 (376mm)
Dropout Size – 20mm (incl. chain tensioner for 10, 15 and 20mm hub axle)
Head Tube Angle - 74°
Seat Tube Angle - 71°
Head Tube Size (full int.) – Tapered 1-1/8” – 1.5” (125mm)
Seat Post Size – 27.2mm
Seat Tube Length – 231mm
Bottom Bracket Height – EU, 11.6”
Wheel Size – 20 x 1.75”
Rider Area
L – 532.6mm
XL – 540.7mm
XXL – 551.9mm
XXXL – 564.2mm
Weight
L – 1.625kg
XL – 1.705kg
XXL – 1.735kg
XXXL – 1.745kg

$899.00
