Complete Bikes / Redline - MX Mini Bike

Redline Bmx

Redline - MX Mini Bike

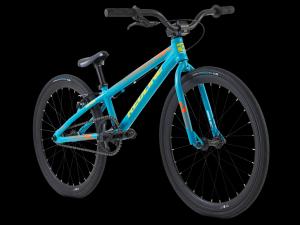

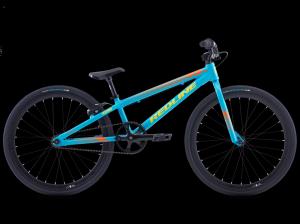

The Redline MX Mini is the perfect entry-level BMX race bike for the beginning youth racer who is 50 to 54 inches tall. Made with an aluminum frame and integrated head tube, the Redline MX Mini is lightweight and easy to maneuver. The MX Mini features a high quality 3-piece crank set, integrated headset, 20-inch wheels and an integrated saddle and seat post combination for ease of use.

Specifications
Frame - 6061 Alloy w/Integrated Headtube
Fork - RL Race Hi-Ten w/ Tapered legs
Headset - Integrated 1"

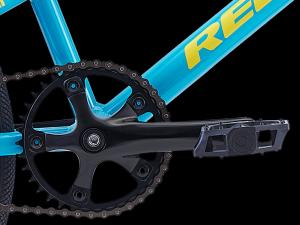

Cranks - Race Aluminum 3pc, 140mm
Sprocket - 38t, Alloy
Bottom bracket - Euro, Square Taper JIS
Cogset - 14t
Chain - KMC Z410
Front hub - Redline Aluminum
Rear hub - RL Aluminum Flip-Flop
Spokes - 14g Steel
Rims - Alloy Race 20 x 1 1/8
Tyres - Vee Speedster, 20 x 1-1/8"

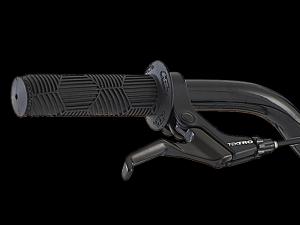

Brake Levers - Tektro
Pedals - RL Race 9/16" PC pedal
Handlebar - Alloy Race, 2.5" Rise / 10° Back / 2° Up
Grips - Redline Hex Expert w/plugs
Stem - RL Hollow Point Aluminum 1" threadless
Seat - RL Race Integrated w/22.2 Post
Brakes - Tektro 926 AL Linear

Geometry
Frame Size - 20"
Bike Top Tube Length - 18.0 "
Bike Head Angle - 72.0 °
Bike Seat Angle - 69.0 °
Bike Chain Stay Length - 13.1 "
Bike BB Height - 10.5 "
Bike Stem Length - 40.0 mm
Bike Handlebar Width - 24.0 "
Bike Crank Length - 140.0 mm

$999.00
